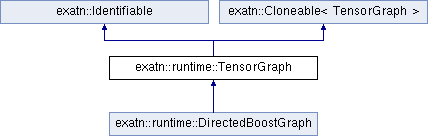

Inheritance diagram for exatn::runtime::TensorGraph:

Public Member Functions
	TensorGraph (const TensorGraph &)=delete

TensorGraph &	operator= (const TensorGraph &)=delete

	TensorGraph (TensorGraph &&) noexcept=default

TensorGraph &	operator= (TensorGraph &&) noexcept=default

virtual VertexIdType	addOperation (std::shared_ptr< TensorOperation > op)=0

virtual void	addDependency (VertexIdType dependent, VertexIdType dependee)=0

virtual bool	dependencyExists (VertexIdType vertex_id1, VertexIdType vertex_id2)=0

virtual TensorOpNode &	getNodeProperties (VertexIdType vertex_id)=0

virtual std::size_t	getNodeDegree (VertexIdType vertex_id)=0

virtual std::size_t	getNumNodes ()=0

virtual std::size_t	getNumDependencies ()=0

virtual std::vector< VertexIdType >	getNeighborList (VertexIdType vertex_id)=0

virtual void	computeShortestPath (VertexIdType startIndex, std::vector< double > &distances, std::vector< VertexIdType > &paths)=0

virtual void	printIt ()=0

virtual std::shared_ptr< TensorGraph >	clone ()=0

void	setNodeExecuting (VertexIdType vertex_id)

void	setNodeExecuted (VertexIdType vertex_id, int error_code=0)

void	setNodeIdle (VertexIdType vertex_id)

bool	nodeExecuting (VertexIdType vertex_id)

bool	nodeExecuted (VertexIdType vertex_id, int *error_code=nullptr)

std::size_t	getTensorUpdateCount (const Tensor &tensor)

void	registerDependencyFreeNode (VertexIdType node_id)

bool	extractDependencyFreeNode (VertexIdType *node_id)

void	registerExecutingNode (VertexIdType node_id)

bool	extractExecutingNode (VertexIdType *node_id)

bool	progressFrontNode (VertexIdType node_executed)

VertexIdType	getFrontNode () const

bool	hasUnexecutedNodes ()

void	lock ()

void	unlock ()

Public Member Functions inherited from exatn::Identifiable
virtual const std::string	name () const =0

virtual const std::string	description () const =0

Public Member Functions inherited from exatn::Cloneable< TensorGraph >
virtual	~Cloneable ()

Protected Attributes
TensorExecState	exec_state_

Member Function Documentation

◆ addDependency()

virtual void exatn::runtime::TensorGraph::addDependency	(	VertexIdType	dependent,
		VertexIdType	dependee
	)

pure virtual

Adds a directed edge between dependent and dependee DAG nodes: <dependent> depends on <dependee> (dependent –> dependee).

Implemented in exatn::runtime::DirectedBoostGraph.

◆ addOperation()

virtual VertexIdType exatn::runtime::TensorGraph::addOperation ( std::shared_ptr< TensorOperation > op )

pure virtual

Adds a new node (tensor operation) into the DAG and returns its id.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ clone()

virtual std::shared_ptr<TensorGraph> exatn::runtime::TensorGraph::clone ( )

pure virtual

Clones an empty subclass instance (needed for plugin registry).

Implements exatn::Cloneable< TensorGraph >.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ computeShortestPath()

virtual void exatn::runtime::TensorGraph::computeShortestPath	(	VertexIdType	startIndex,
		std::vector< double > &	distances,
		std::vector< VertexIdType > &	paths
	)

pure virtual

Computes the shortest path from the start index.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ dependencyExists()

virtual bool exatn::runtime::TensorGraph::dependencyExists	(	VertexIdType	vertex_id1,
		VertexIdType	vertex_id2
	)

pure virtual

Returns TRUE if there is a dependency between two DAG nodes: If vertex_id1 node depends on vertex_id2 node.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ extractDependencyFreeNode()

bool exatn::runtime::TensorGraph::extractDependencyFreeNode ( VertexIdType * node_id )

inline

Extracts a dependency-free node from the list. Returns FALSE if no such node exists.

◆ extractExecutingNode()

bool exatn::runtime::TensorGraph::extractExecutingNode ( VertexIdType * node_id )

inline

Extracts an executed DAG node from the list of executing nodes.

◆ getFrontNode()

VertexIdType exatn::runtime::TensorGraph::getFrontNode ( ) const

inline

Returns the current front node id.

◆ getNeighborList()

virtual std::vector<VertexIdType> exatn::runtime::TensorGraph::getNeighborList ( VertexIdType vertex_id )

pure virtual

Returns the list of nodes connected to the given DAG node.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ getNodeDegree()

virtual std::size_t exatn::runtime::TensorGraph::getNodeDegree ( VertexIdType vertex_id )

pure virtual

Returns the number of nodes the given node is connected to.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ getNodeProperties()

virtual TensorOpNode& exatn::runtime::TensorGraph::getNodeProperties ( VertexIdType vertex_id )

pure virtual

Returns the properties (TensorOpNode) of a given DAG node (by reference). Subsequently, one may need to lock/unlock the returned TensorOpNode in order to ensure a mutually exclusive access to it.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ getNumDependencies()

virtual std::size_t exatn::runtime::TensorGraph::getNumDependencies ( )

pure virtual

Returns the total number of dependencies (directed edges) in the DAG.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ getNumNodes()

virtual std::size_t exatn::runtime::TensorGraph::getNumNodes ( )

pure virtual

Returns the total number of nodes in the DAG.

Implemented in exatn::runtime::DirectedBoostGraph.

◆ getTensorUpdateCount()

std::size_t exatn::runtime::TensorGraph::getTensorUpdateCount ( const Tensor & tensor )

inline

Returns the current outstanding update count on the tensor in the DAG.

◆ hasUnexecutedNodes()

bool exatn::runtime::TensorGraph::hasUnexecutedNodes ( )

inline

Affirms that the DAG has unexecuted nodes.

◆ nodeExecuted()

bool exatn::runtime::TensorGraph::nodeExecuted	(	VertexIdType	vertex_id,
		int *	error_code = `nullptr`
	)

inline

Returns TRUE if the DAG node has been executed to completion, error_code will return the error code (if executed).

◆ nodeExecuting()

bool exatn::runtime::TensorGraph::nodeExecuting ( VertexIdType vertex_id )

inline

Returns TRUE if the DAG node is currently being executed.

◆ printIt()

virtual void exatn::runtime::TensorGraph::printIt ( )

pure virtual

Prints the DAG

Implemented in exatn::runtime::DirectedBoostGraph.

◆ progressFrontNode()

bool exatn::runtime::TensorGraph::progressFrontNode ( VertexIdType node_executed )

inline

Given just executed DAG node, moves forward the DAG front node if appropriate.

◆ registerDependencyFreeNode()

void exatn::runtime::TensorGraph::registerDependencyFreeNode ( VertexIdType node_id )

inline

Registers a DAG node without dependencies.

◆ registerExecutingNode()

void exatn::runtime::TensorGraph::registerExecutingNode ( VertexIdType node_id )

inline

Registers a DAG node as being executed.

◆ setNodeExecuted()

void exatn::runtime::TensorGraph::setNodeExecuted	(	VertexIdType	vertex_id,
		int	error_code = `0`
	)

inline

Marks the DAG node as executed to completion.

◆ setNodeExecuting()

void exatn::runtime::TensorGraph::setNodeExecuting ( VertexIdType vertex_id )

inline

Marks the DAG node as being currently executed.

◆ setNodeIdle()

void exatn::runtime::TensorGraph::setNodeIdle ( VertexIdType vertex_id )

inline

Marks the DAG node as idle.

The documentation for this class was generated from the following file:

/Users/aqw/exatn/src/runtime/graph/tensor_graph.hpp
